SPECIFICATIONS
AC Current: 600.0A
AC Voltage: 750.0V
Battery Included: Yes
Brand Name: FNIRSI
Certification: CE
DC voltage: 999.9V
DIY Supplies: Electrical
Dimensions: 193x74x32mm
High-concerned chemical: none
Measuring resistance range: 99.99MΩ
Model Number: DMC-100
Operating Temperature: 0-40℃
Origin: Mainland China
Semi-finishedproduct: No
Supply Voltage: 5V
Main Specifications of the Device

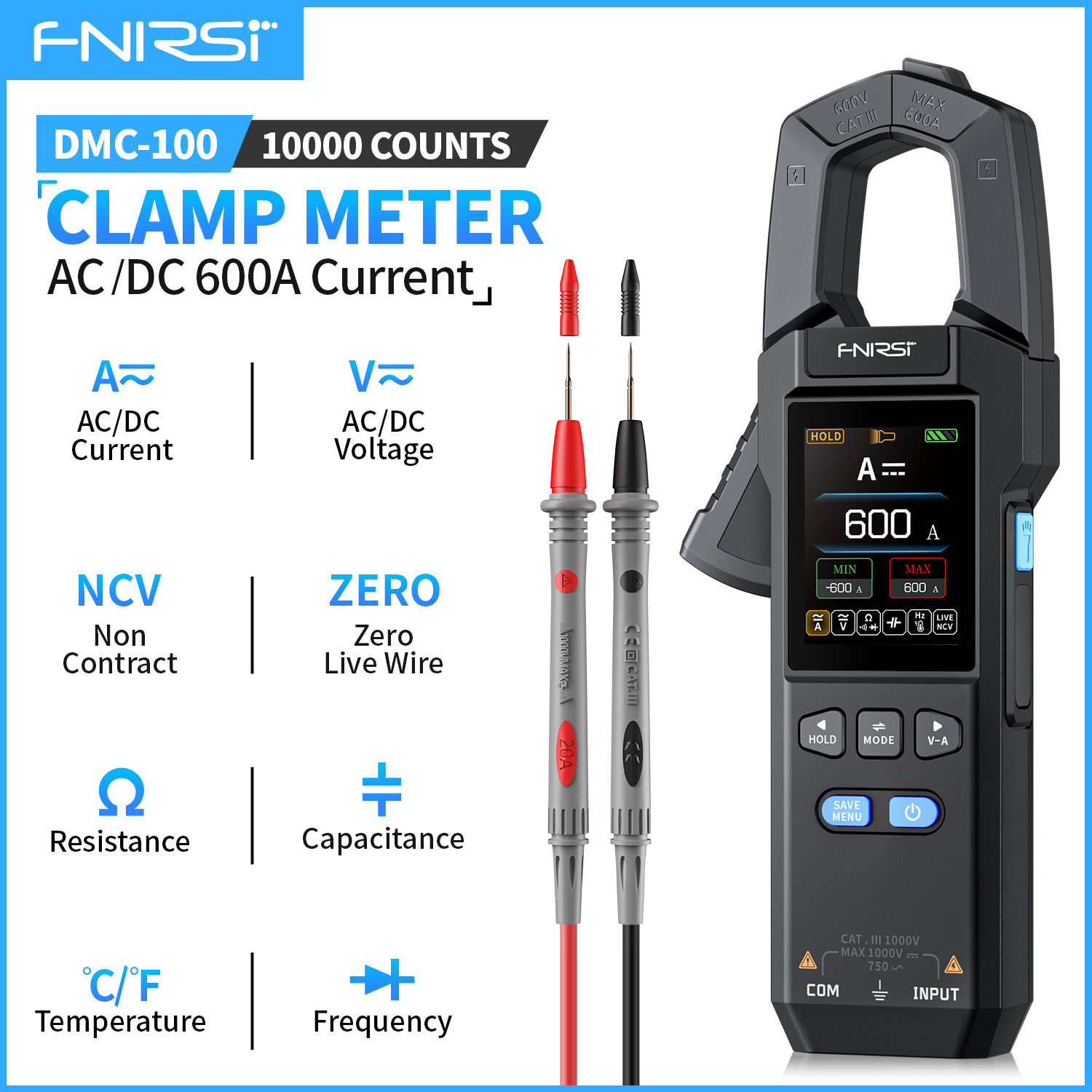

Model：DMC-100 clamp multimeter
Maximum size of jaws: 25mm
Screen: 2.0'' TFT color screen
Screen resolution：240*320 pixels
Battery capacity: 3.7V, 1500mAh battery
Charging specification: USBType-C, 5V/1A
Product weight: 194g
Product size: 193x74x32mm
Measurement parameters
DC voltage: 9.999V/99.99V/999.9V
AC voltage: 9.999V/99.99V/750.0V
DC current/AC current: 99.99A/600.0A
Resistance: 99.99MΩ/9.999MΩ/999.9KΩ/99.99KΩ/9.999KΩ/999.9Ω
Capacitance: 9.999mF/99.99mF/999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF
Frequency: 9.999MHz/999.9KHz/99.99KHz/9.999KHz/999.99Hz/99.99Hz/9.999Hz
Temperature: -55~1300℃/-67~2372℉
Diode Measurement: √
On-off test: √
Non-Contact Voltage Check (NCV): √
Zero Fire Wire Check: √
